Probe - Hysterometer

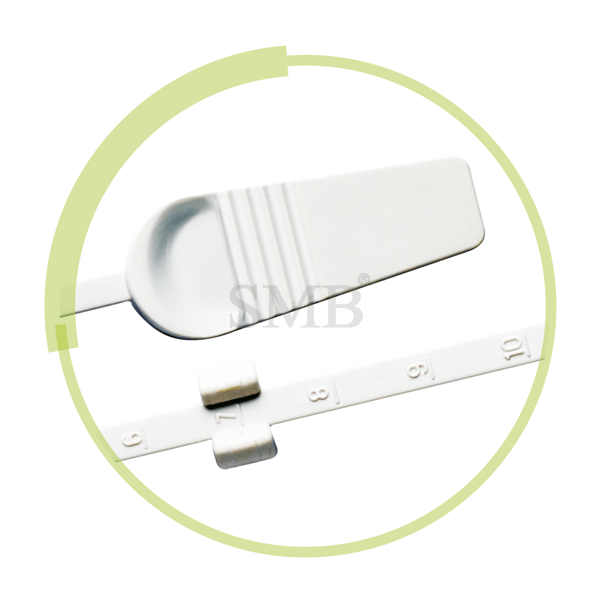

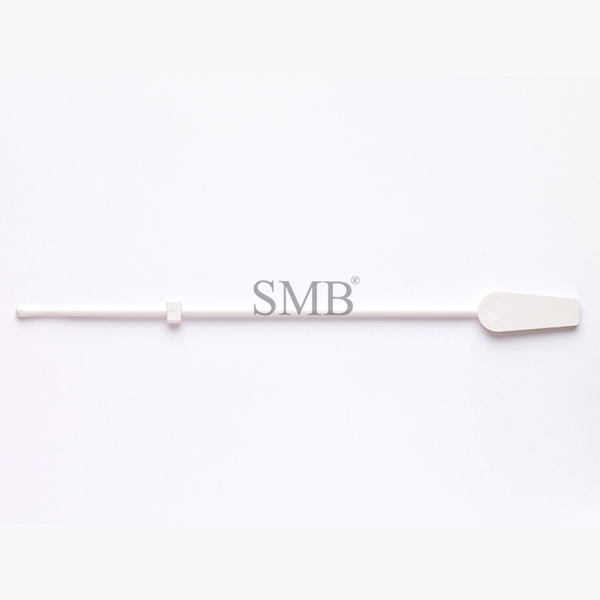

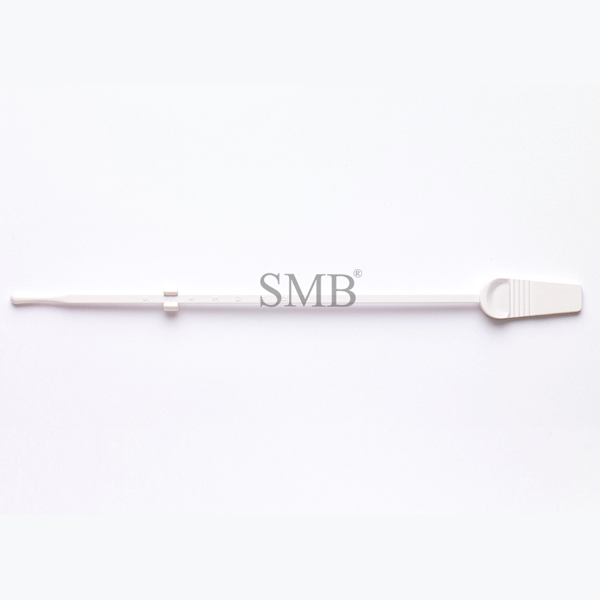

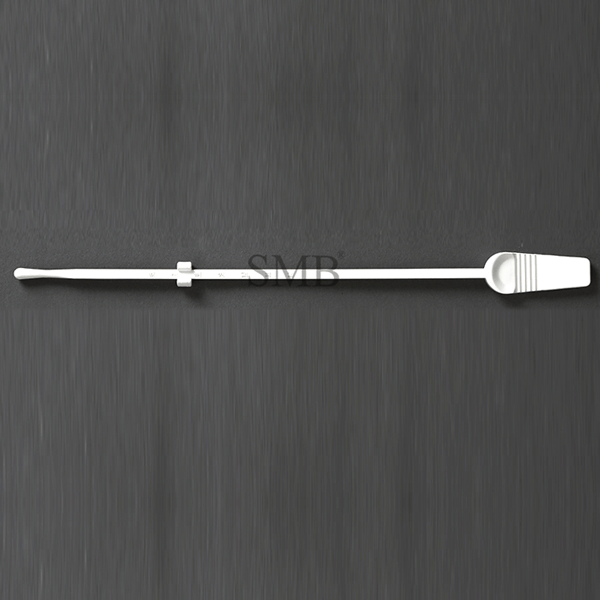

Variant 1: SMB Single Sided Probe with Cursor
Description :-

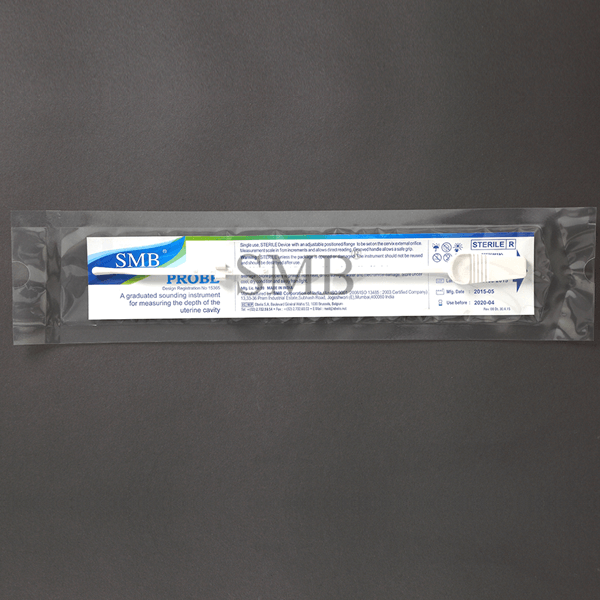

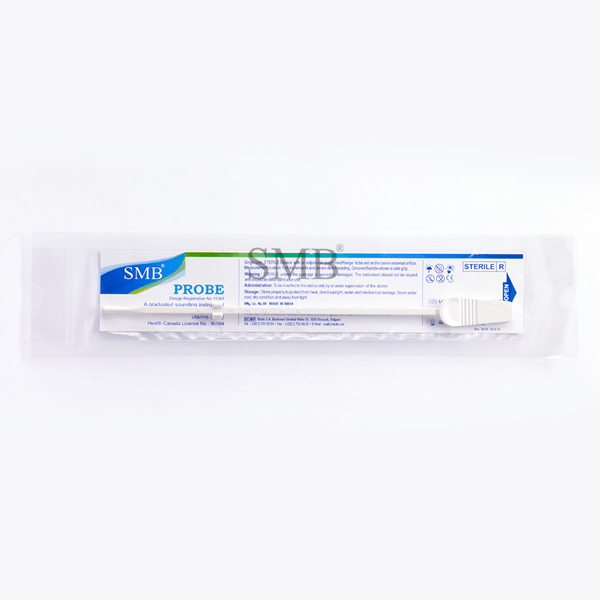

A graduated sounding instrument for measuring the depth of the uterine cavity. It is a Gamma sterilized readily usable device. The design of SMB’s Hysterometer is registered under the Design Registration No.240938.
Hysterometer is an instrument made from medical grade ABS plastic, used for probing and dilating the uterus as well as measuring the length of the cervical canal.
| Total Length of Hysterometer | 255mm |
| Calibrated Number Scale up to | 12cm from the tip on both the side |
| Scale length | 12cm from the tip |
Approved by MEB Netherlands & Health Canada
- Hysterometer is for single use only.
- It is straight, slightly conical and centimeter marked with adjustable positioned to be set on the cervix external orifice.
- The rounded tip allows a comfortable insertion through the cervical canal.
- The handle is a short, smooth thumb grip and has grooves for improved grip. It also has graduated centimeter markings.
- Measurement scale ranges from 6 to 12cm (1cm resolution) and allows a direct reading on the Probe / Hysterometer.

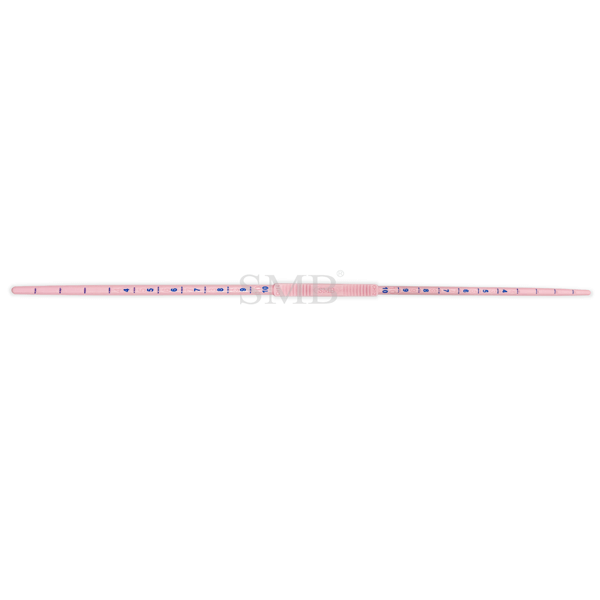

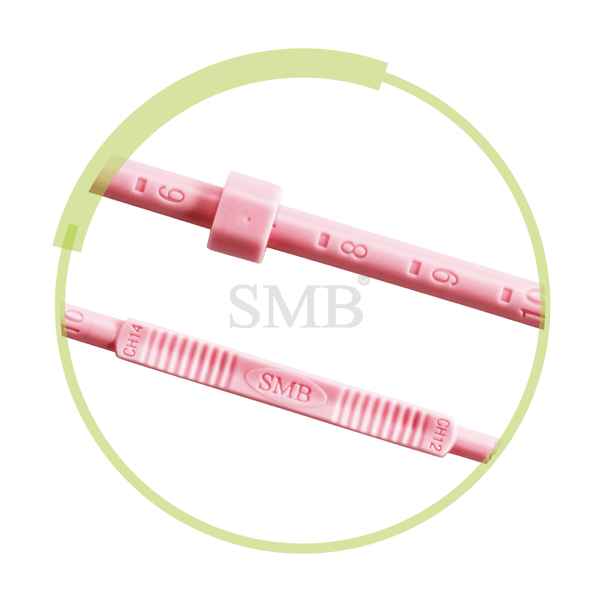

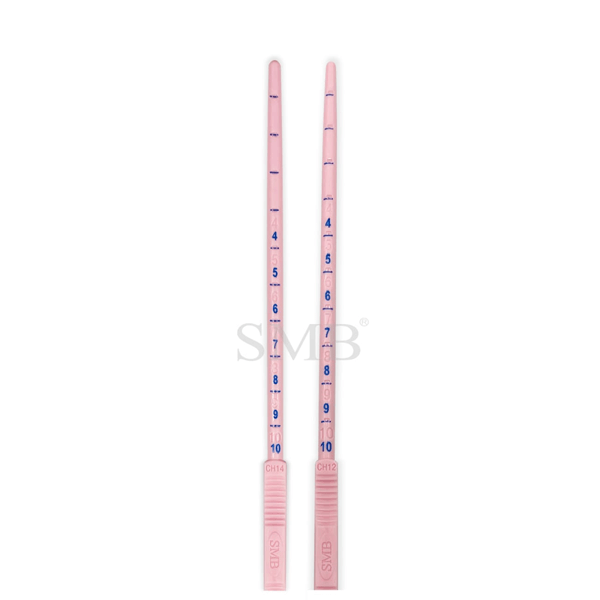

Variant 2: SMB Double Sided Probe with Cursor
Description :-
It is a malleable instrument made from medical grade polypropylene, used for probing and dilating the uterus as well as measuring the length of the cervical canal. The design of SMB’s Hysterometer is registered under the Design Registration No. 278101.
| Total Length | 270mm |
| Calibrated Number Scale length up to | 10cm from the tip on both the sides |
Approved by MEB Netherlands & Health Canada
- Strong but flexible.
- Only for single-use.
- Double-ended combined device designed for gentle dilation of the cervix, assess the depth of the uterus.
- The smooth and rounded ends are specially designed to allow gradual dilation of the cervix, whilst reducing risk of perforation.

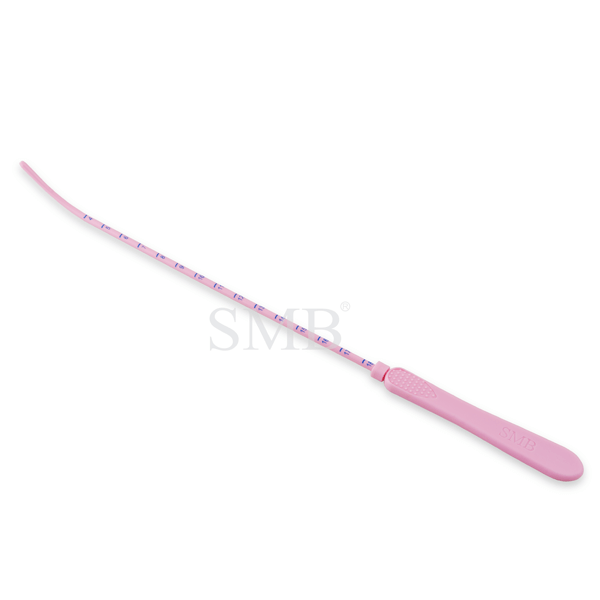

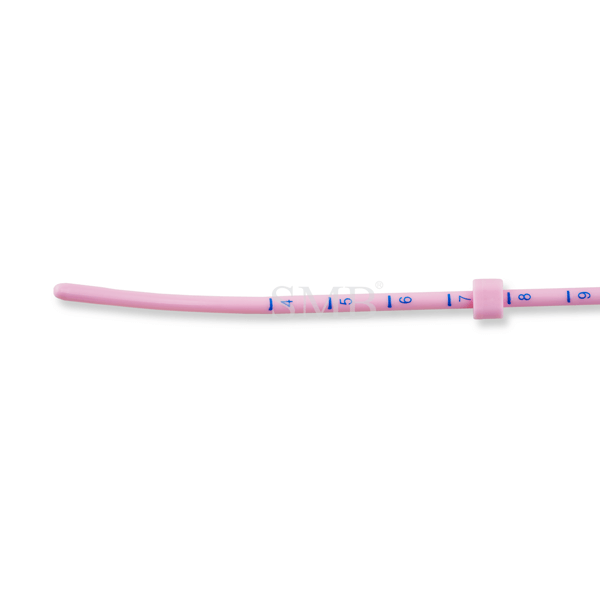

Variant 3: SMB Angled Probe with Cursor
Description :-
It is a malleable instrument made from medical grade polypropylene, used for probing and dilating the uterus as well as measuring the length of the cervical canal.
The design of SMB's Hysterometer is registered under the Design registration no.278102.
| Total Length | 268mm |
| Calibrated Number Scale up to | 18 cm from the tip |
| Scale length | 18 cm from the tip |
Approved by MEB Netherlands & Health Canada
- This Probe has curve on the tip for easy insertion.
- The handle is long, smooth and improved thumb grip.
- It also has graduated centimeter markings.

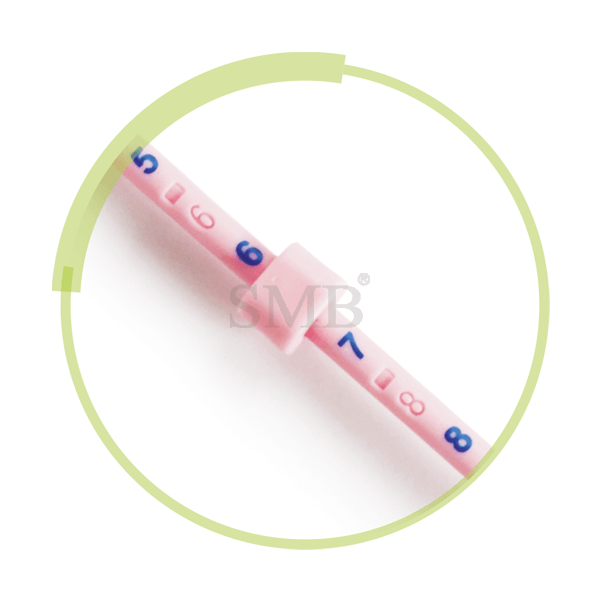

- Movable cursor to help with measurements.
- Strong and flexible
