SMB Copper T 380A

Intrauterine Device - Long lasting Contraceptive for 10 years

Size and Accessories

Additional accessories like Hysterometer/Probe, Loading/Folding devices and Pre-loaded IUD are provided on specific Customer request.

Product Code	Horizontal Arm Length in mm	Vertical Stem Length in mm	Approx. Sound Measuring Range	Purity of Copper as Cu	Total Active Copper Surface Area
N 32	32	36	6 - 9 cm	99.99%	380mm²

The above information is indicative only. The final decision of selection of the correct model for the patient is to be made by the Gynecologist / Physician.

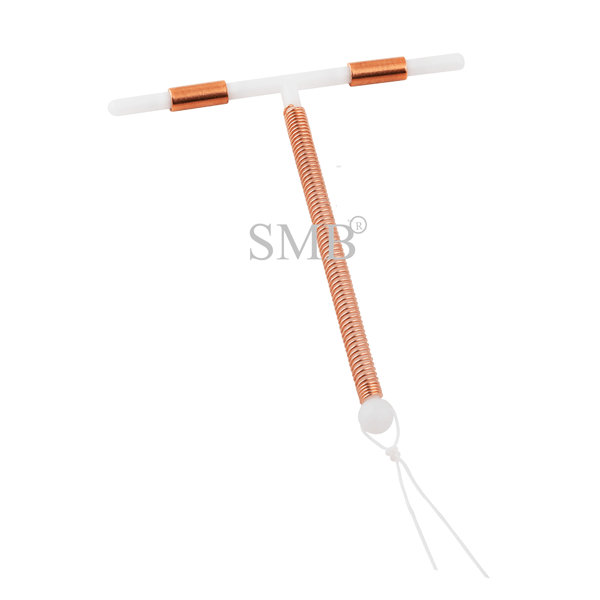

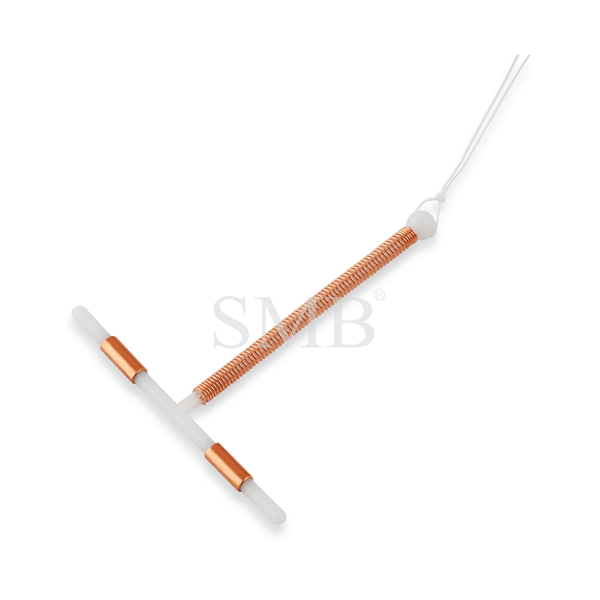

Copper T 380A

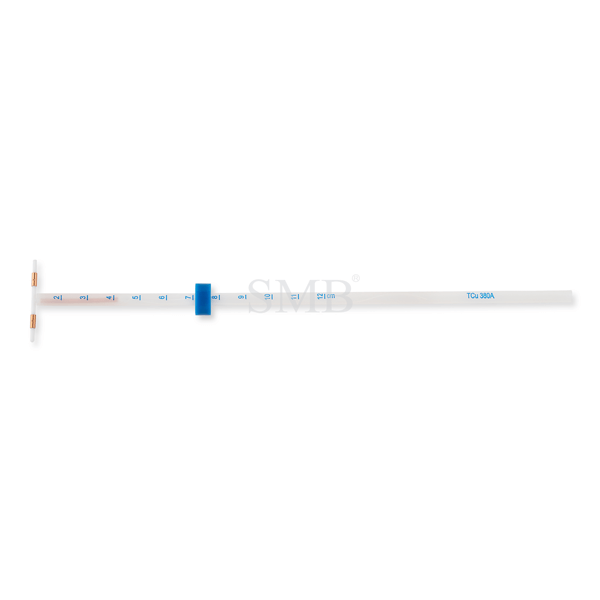

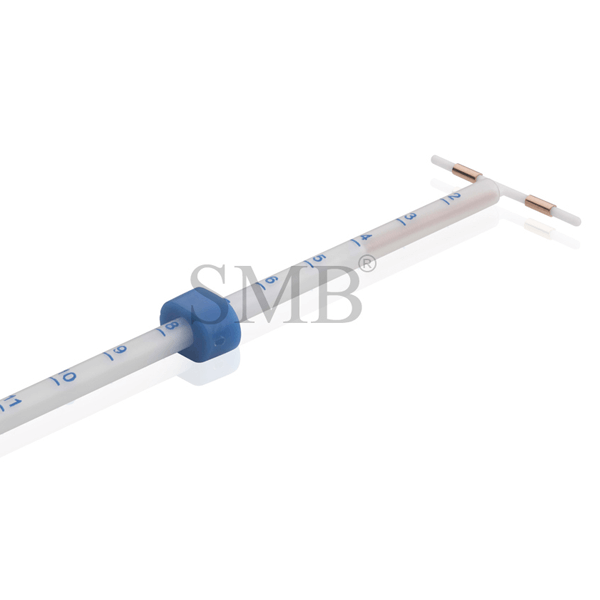

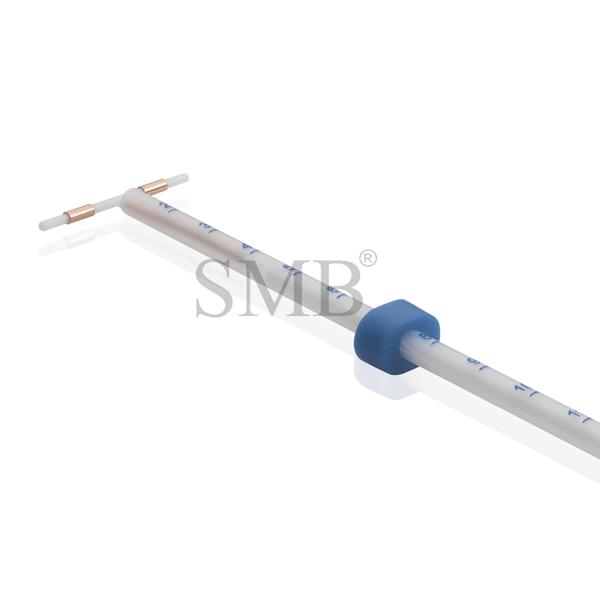

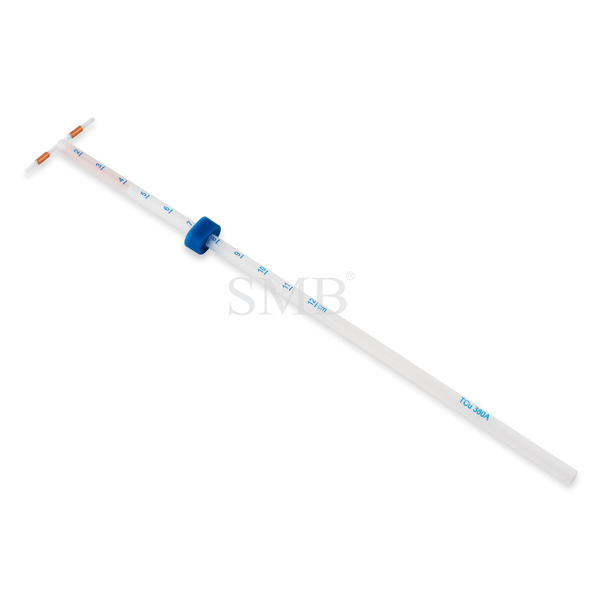

Copper T 380A in Tube with Flange

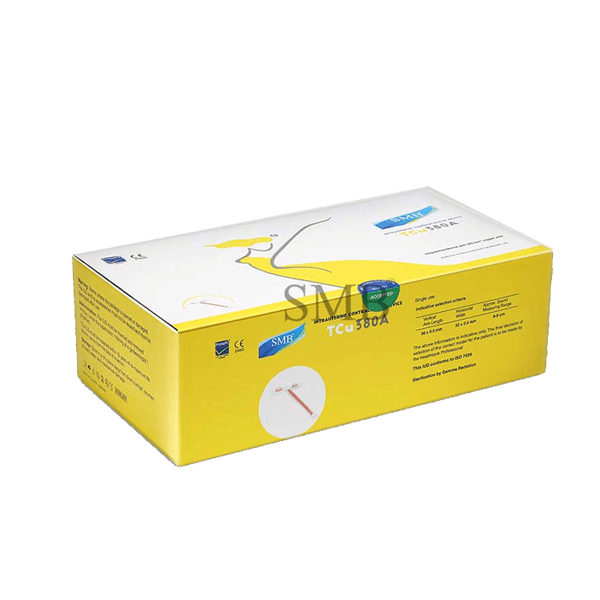

Copper T 380A Clinic Carton

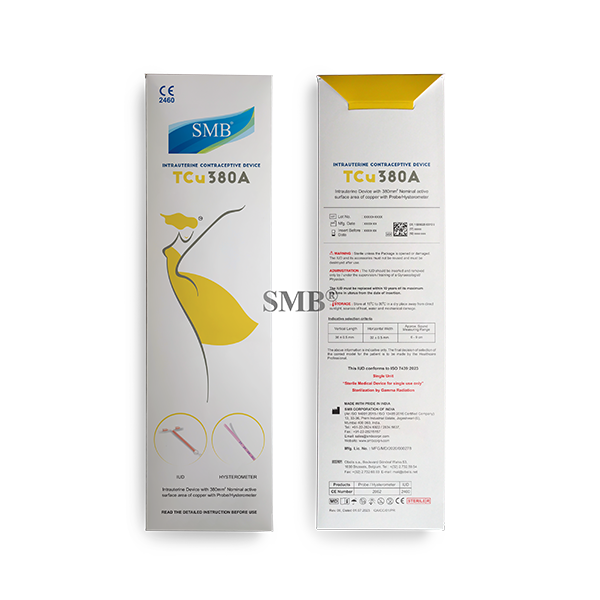

Catch Cover TCu38A with Probe

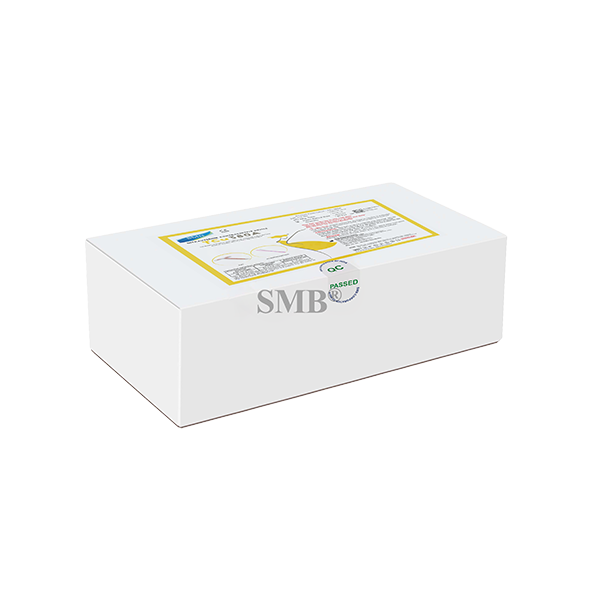

Clinic Carton TCu380A with Probe

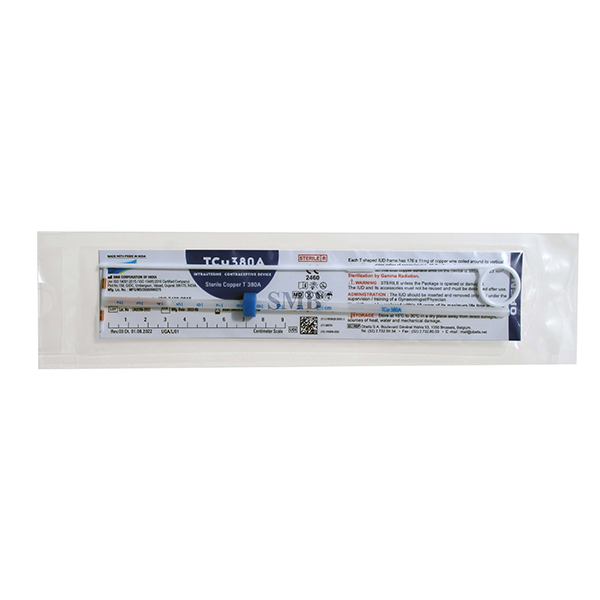

Label Pouch TCu380A

IUD

Product Description

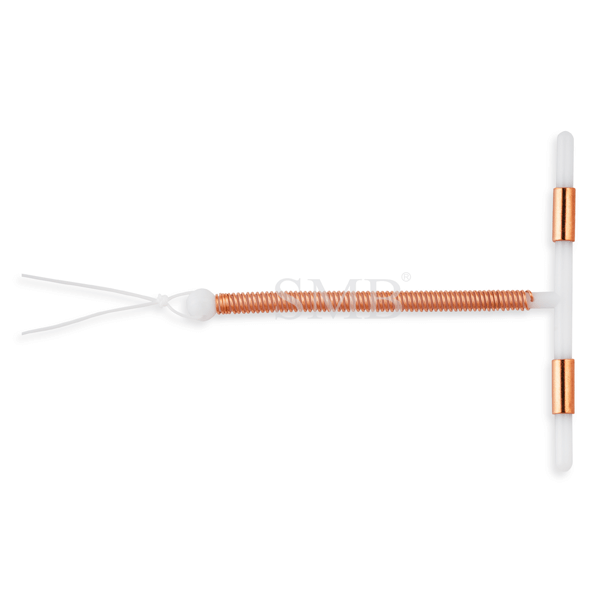

Each SMB Copper T 380A frame is made from compound of Low Density Polyethylene and Barium Sulphate (15% - 24%) wound with 176mg of 0.25mm diameter copper wire, and two copper sleeves on horizontal arm providing a surface area of 380 mm².

The 'T' is equipped with high-density polyethylene filament for easy removal.

It is packed together with an Insertion Tube and Solid Rod in a Mylar-Mylar film pouch.

Centimeter Scale printed in blue is provided on the Insertion Tube for exact positioning of the flange on the Insertion Tube before lnsertion.

SMB offers NextGen form of winding system for Copper T 380A – TCu 380A. The only IUD manufacturing in the world offering the NextGen form of double winding system. This system has a distinct advantage over the single winding system offered by other manufacturers in the world.

The double winding form rules out the possibility of any wire protrusion and this system does not allow overlapping of wire.

Copper T 380A is 99% effective Intrauterine Contraceptive Device and does not affect female hormonal system.

The SMB Copper T 380A have undergone clinical studies in Vietnam for 60 months and confirmed to be a safe and effective contraceptive.

Advantages of Double Copper Winding

Winding is difficult to unwind, smooth and uniform winding over the stem
No protrusion or loose end near the stem hole
Uniform wire tension throughout the winding length makes it more elegant

Advantages

Approved by MEB Netherlands, ANVISA, CDSCO, COFEPRIS, SFDA, TFDA, UNFPA, USAID, JMOH

Proven Safe Reversible
Long intrauterine life
Highly convenient
Requires no daily attention
No touch technique is employed while insertion
Can be used by women who cannot use Steroid Contraceptives
Safe after abortion or miscarriage with no infection
Safe in HIV infected women on antiretroviral therapy and clinically well

Easy to load
Hormone free
Immediately effective
Safe contraceptive for breast feeding women
Conception is possible after removal of the device
Safe for all women including adolescents and women over 40
Safe in women having no history of pelvic inflammatory disease (PID)
